HM9 Flow Ti – Air edition

In the late 1940s and 1950s, aerodynamic principles were just beginning to take root in automotive design. Curvilinear forms became more prominent, carrying the immediate promise of power and speed – but designers were guided more by their aesthetic sense than by any scientific precepts. Inspired by the dynamic profiles of automotive and aviation mid-century design, HM9 Flow treads the path first opened by the HM4 Thunderbolt and HM6 Space Pirate, utilising a geometrically complex combination of milled sapphire crystal and titanium case elements. But HM9 goes beyond its predecessors, redefining what was thought to be possible in case design.

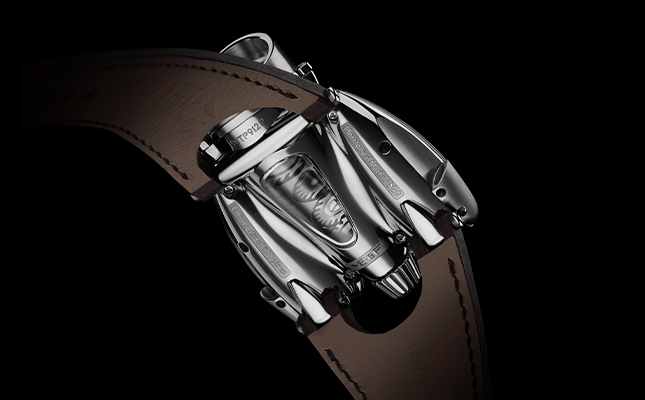

Reminiscent of a jet engine, the highly complex case encloses an equally complex manual winding movement, developed fully in house. Twin balance wheels beat independently on each flank of the Machine, while the central body reveals the gearbox of the HM9 engine: a planetary differential that averages the output of both balances to provide one stable reading of the time.

  • Reference
  • 90.TL.AB
  • Limited edition
  • 33 pieces
  • Case material
  • Titan Grade 5
  • Case diameter
  • 57x47mm
  • Case thickness
  • 23mm
  • Caseback
  • Sapphire
  • Water resistance
  • 30 metres
  • Movement
  • Mechanical with planetary differencial
  • Winding
  • Manual
  • Power reserve
  • 45 hours
  • Frequency
  • 18,000 v/h (2.5Hz)
  • Components
  • 301
  • Dial color
  • Black
  • Dial material
  • aluminium
  • Dial decoration
  • Air edition
  • Functions
  • Hours, minutes
  • Bracelet material
  • veal leather
  • Buckle type
  • Folding clasp
  • Buckle material
  • Titanim
