FERDINAND BERTHOUD

FB1 OEUVRE D'OR

An Allegory of heritage conservation

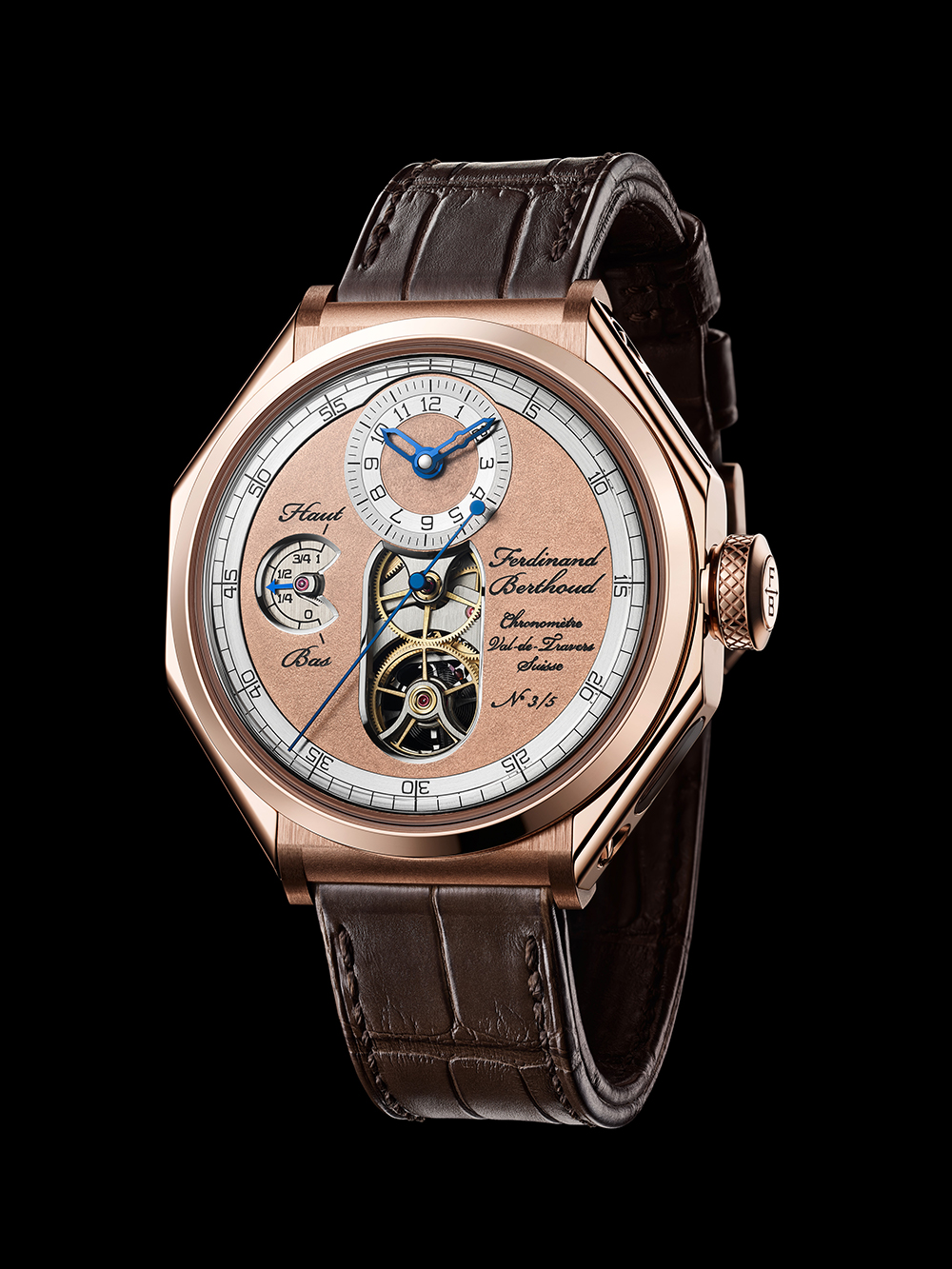

This model previously existed in two gold versions: white gold with titanium lugs (FB 1.1) and rose gold with black ceramic lugs (FB 1.2). The collection now welcomes two additional variations, reprising the precious metals of their predecessors, white gold (FB 1.1-2) and rose gold (FB 1.2-1) respectively, while adorning them with original decorations.

These new entirely hand-crafted decorations are lavished on both the dial and its engravings, as well as the movement half-bridges, entirely crafted in 18-carat gold. The white gold version is also the very first gemset creation from Chronométrie Ferdinand Berthoud.

These two new editions are issued in exclusive five-piece limited editions. They are directly inspired by a model created by Ferdinand Berthoud, astronomical pocket watch No. 3, assembled and adjusted in Paris in 1806 by his student, Jean Martin. It is now part of the L.U.CEUM collection in Fleurier.



A PHILOSOPHICAL APPROACH

The Chronomètre FB 1 is the first creation from Chronométrie Ferdinand Berthoud. Entirely crafted within the Manufacture in Fleurier, it stems from many years of development.

Its slant-edged case is inspired by the architecture of the marine chronometers designed by Ferdinand Berthoud from 1760 onwards. It was on December 13th of that year that he submitted to the French Académie des Sciences his Mémoire sur les principes de construction d’une Horloge de Marine. This description of the construction principles for a marine clock laid the foundations for Ferdinand Berthoud’s very first marine chronometer, which was completed the following year, in 1761. For more than 45 years, Ferdinand Berthoud perfected its movements so as to achieve the highest possible chronometric precision.

The FB 1 collection of Chronométrie Ferdinand Berthoud pays tribute to this work and to the movements that pioneered chronometric precision. Its case is inspired by Ferdinand Berthoud’s marine chronometers, in particular their gimbal suspension that served to maintain on-board chronometers in a permanently horizontal position.

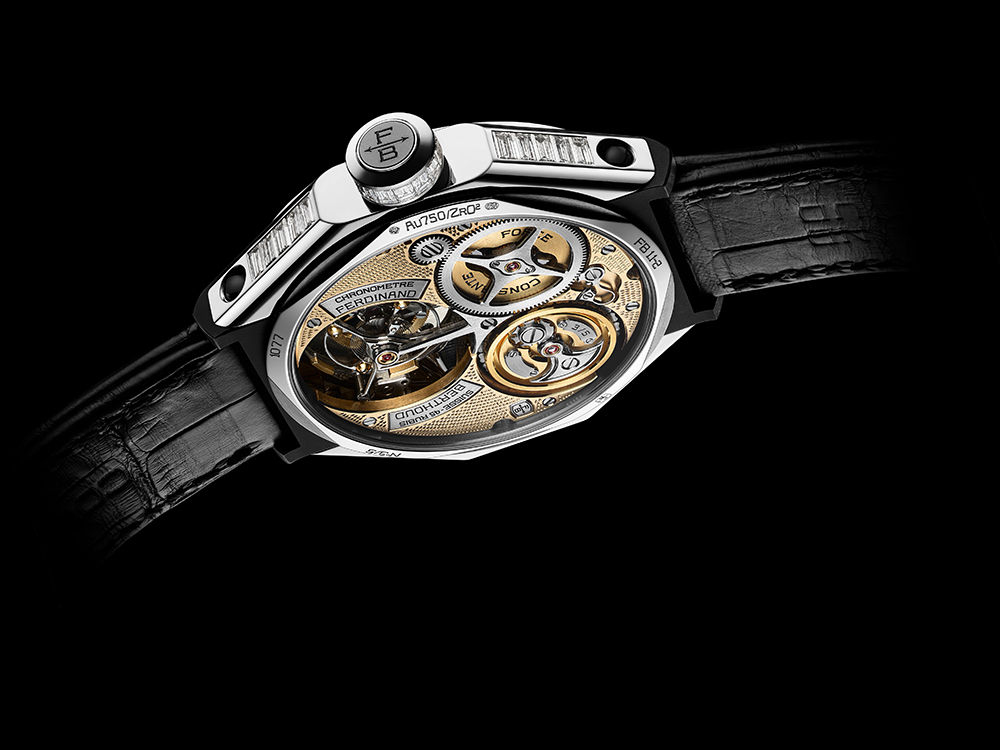

The movement is placed in the centre of a watertight container and has a characteristic pillar-type structure. This technique of affixing bridges to the mainplate was no longer in use until this new revival. It lightens the structure of the movement and at the same time enables a very open view of its details and finishes. This 100% in-house movement has three distinctive features.







A DARING TECHNICAL CHOICE

First of all, the movement comprises an original suspended fusee-and-chain transmission system. The latter serves to deliver constant force to the escapement throughout the running time of the movement, from its first turn of the crown through to complete winding, thereby serving to achieve 53 hours of power reserve.

Secondly, the calibre is equipped with a direct-drive seconds tourbillon. The tourbillon itself makes it possible to compensate for the variations in movement induced by the different positions to which a wristwatch will have to adapt, several dozen times a day. This direct-drive seconds display is made possible by the correlation between the fourth wheel and the wheel driving the tourbillon carriage, both perfectly identical and visible on the dial side.

Finally, the FB-T.FC calibre is equipped with a power-reserve indicator operating in an atypical manner. It rests on a mobile cone which, in association with the rotation of the cylinder, moves up and down according to the state of wind. A jewel-tipped mobile arm (feeler spindle), takes an extremely accurate measurement, which it then transmits to a visible hand on the dial side.

The accuracy of each movement is attested by a chronometry certificate issued by the Official Swiss Chronometer Testing Institute (COSC).

Four patents have been filed for the unique features of the Ferdinand Berthoud movement.

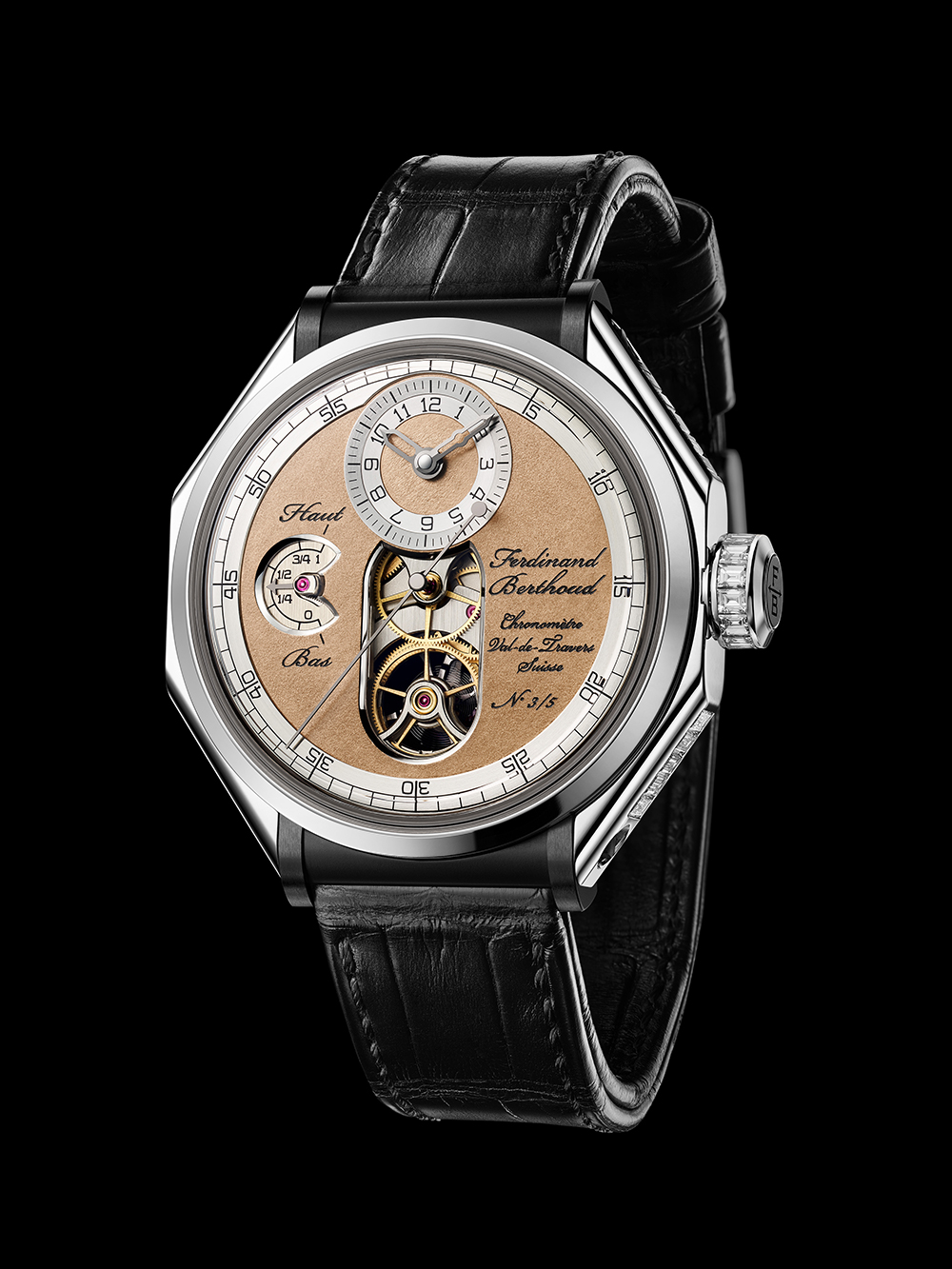

These two new five-piece limited editions entirely reproduce the original movement of the Chronométrie FB 1, while adding totally exclusive decorations. The first limited edition, named FB 1.1-2, features several new finishes.
